We connect the approved drawing to structure, hardware, moving parts, accessories and packing, so the final release is based on defined checkpoints rather than a general visual check.
Structural condition, moving parts, hardware completeness, model-specific functions, included accessories, surface finish and packing are checked against the approved order before release.
RESPONSIBILITY POINTS
Confirm material, tube dimensions and the approved product specification before fabrication.
Review cutting, drilling, hole positions, frame alignment and welded areas against the approved drawing.
Check preparation, powder-coating coverage, color consistency and visible surface condition.
Install and account for the specified hardware, attachments, guides, cables and adjustment parts.
Operate moving parts, adjustments, catches and cable travel through their intended working range.
Match the machine, accessory list, wear-part spares and wooden-crate protection before release.
FINAL RELEASE CHECKLIST
| Checkpoint | What is checked | Release condition |
|---|---|---|

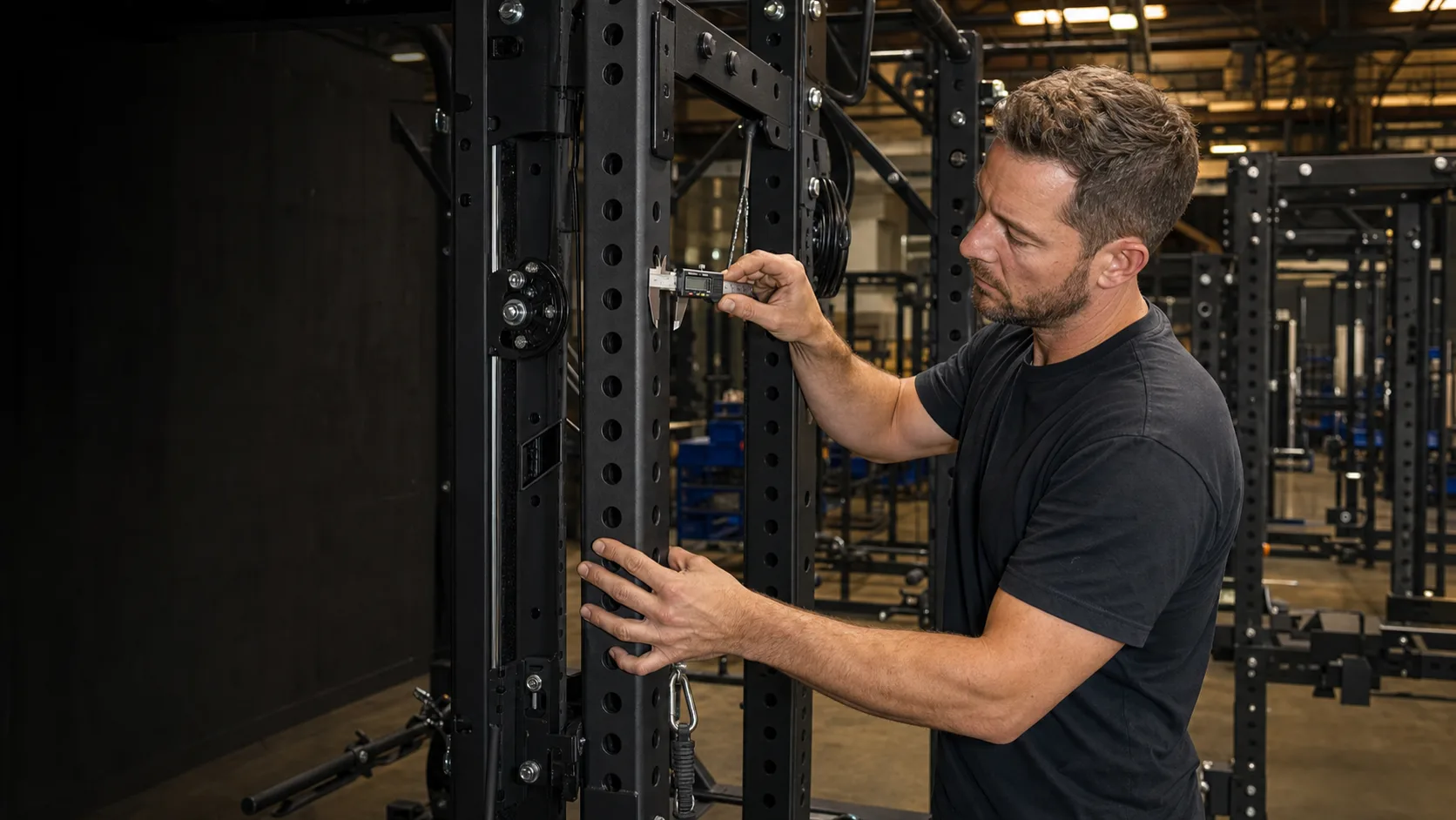

| Frame alignment & welded areas | Upright position, crossmember level, welded areas and hole alignment | Matches the approved drawing; assembled frame sits correctly with no visible structural defect |
| Main rack material | 75 × 75 × 3 mm Q235 fitness-equipment steel tube, or the approved stainless-steel option | Material, section size and finish match the confirmed order |
| Hardware completeness | Every bolt, nut, washer, pin, clip and visible fastening point | Required hardware is fitted or grouped for assembly; no item is missing from the list |
| Pulley system | Pulley material, specified size, bearing movement, position and alignment | Pulley rotates freely and follows the approved cable layout |
| Cable system | 7 × 19 steel wire rope, routing, termination, tension, travel and return | Cable remains correctly seated and travels without visible interference |
| Smith movement & safeties | Guide-rod travel, catches, stops and working positions on applicable models | Bar travels smoothly and safety points engage at the intended positions |
| Adjustment points | J-cups, spotter arms, pulley carriages, bench positions, pins and locking points | Each part inserts, locks, releases and repeats its position correctly |
| Functions & attachments | Handles, bars, ropes, landmine, storage and model-specific functions | Function test is complete and included attachments match the approved list |
| Surface color & condition | Powder-coating coverage, requested color, visible adhesion and handling marks | Finish is consistent with the approved direction and suitable for packing |
| Accessory & wear-part list | Accessories, grouped hardware, included tools, wear-part spares and reference list | Count matches the final packing list before the crate closes |
| Wooden-crate release | Component separation, foam protection, edge protection, hardware grouping and crate integrity | Parts are immobilized and protected for the confirmed export shipment |
MOVING COMPONENTS

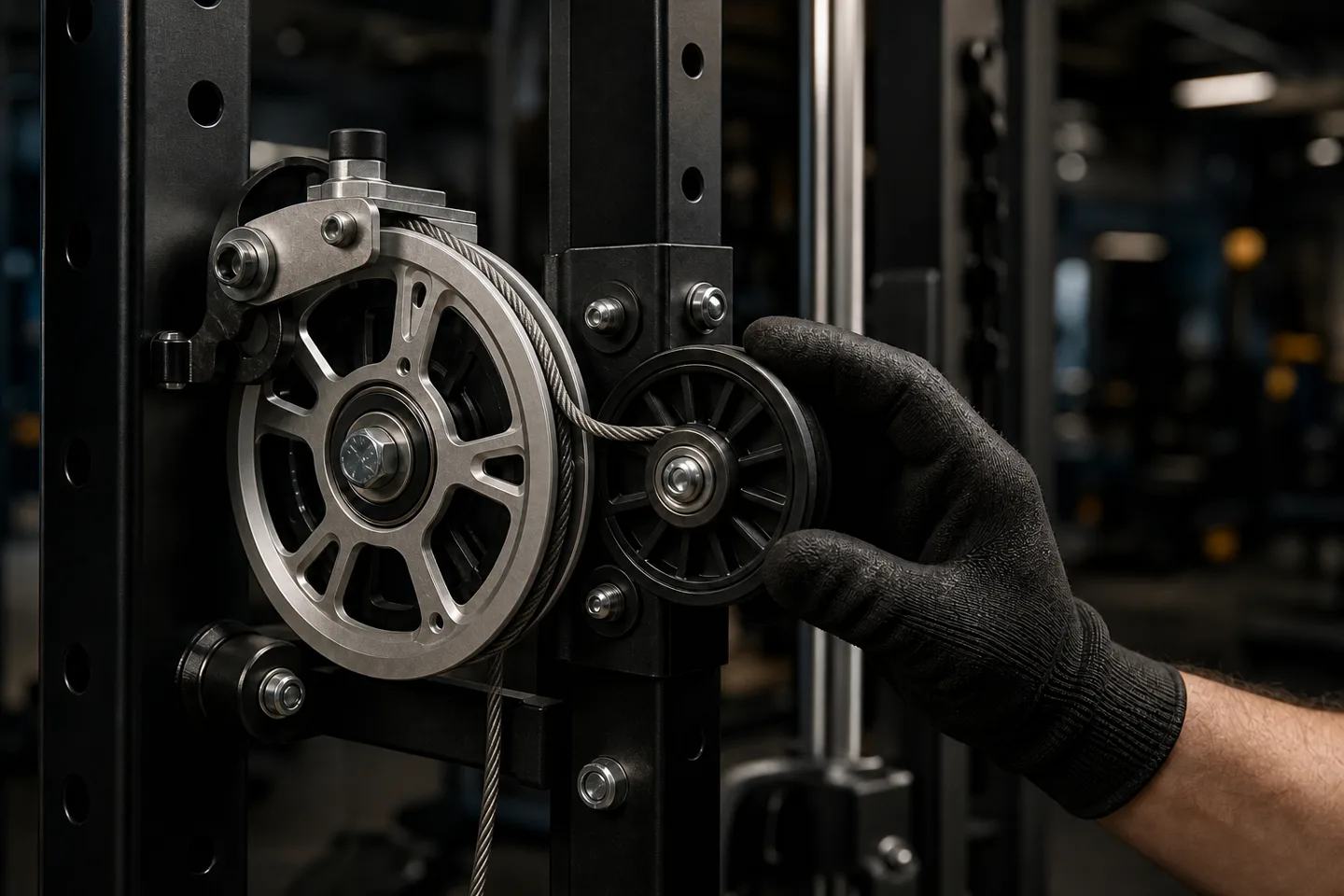

On cable-equipped models, the pulley type and size, bearing movement, 7 × 19 cable route, termination and full travel are reviewed as one working system.
PACKING RELEASE

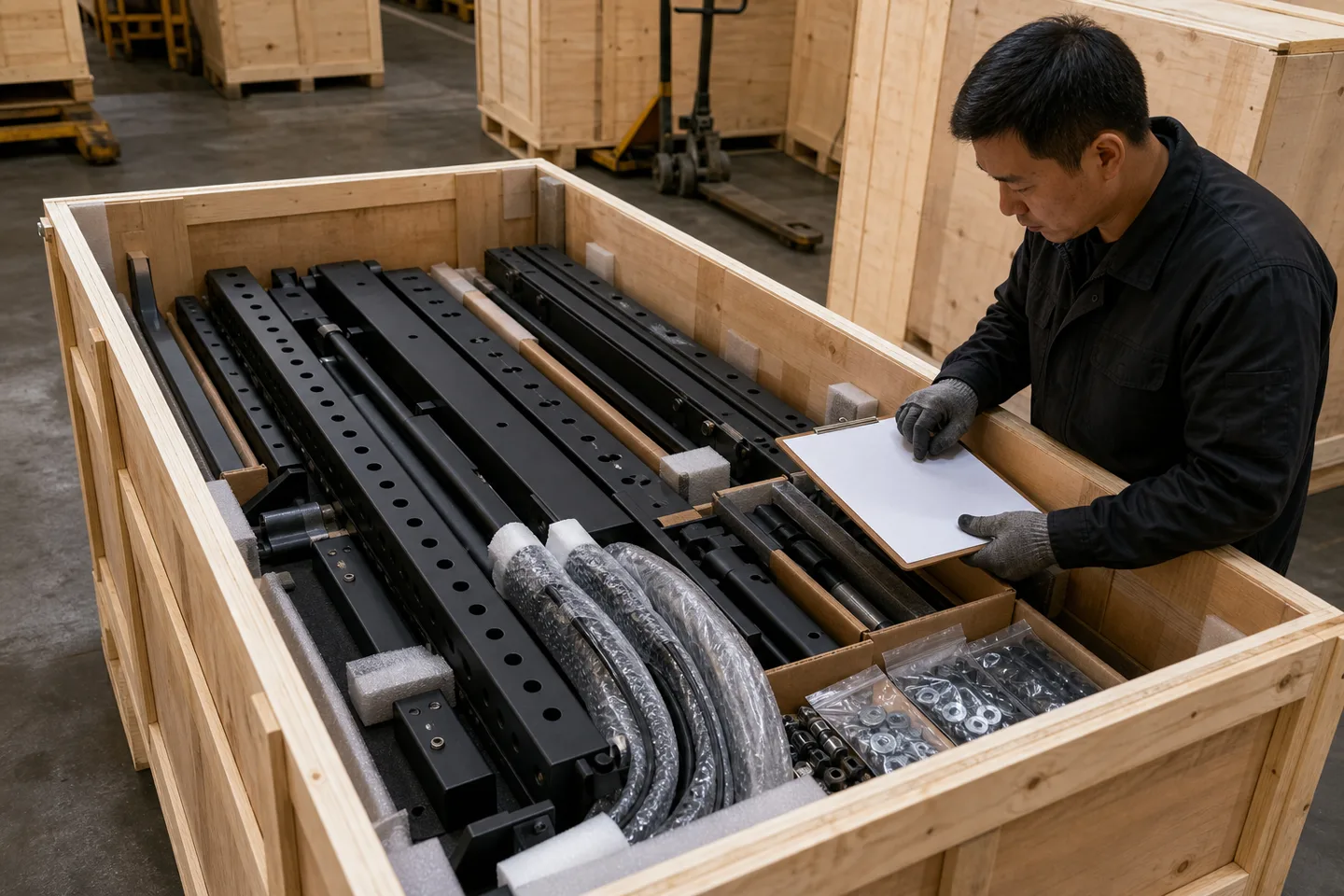

Disassembled uprights, crossmembers, moving components and grouped hardware are protected and matched to the packing list before the crate is released.
BUYER HANDOVER
The model, functions, material, finish, accessories and packing direction used as the inspection reference.
A model-specific checklist that keeps structure, moving parts, hardware and functions connected.
The included attachments and grouped assembly hardware checked against the approved configuration.
The packing list, wear-part spares and wooden-crate release check prepared for shipment.
